Standard PVC conveyor belts are suitable for applications with incline angle below 16 in dry environments. / PVG conveyor belts are suitable for applications with incline angle below 18 in humid environments. / Woven conveyor belts are applicable to underground coalmines as well as the working environments where flame resistance is required in mining power,chemical and metallurgy industries.
+86-532-66738109 Features
● Excellent flame-retardant performance
and anti-static property.
● Light weight,high tensile strength,good integrality,high adhesion,resistant to impact and tear.
Product Series
● Standard PVC belt,pressed PVC belt,PVG belt,
DYNA belt
● Carcass is solid woven which is PVC paste impregnated and then protected by PVC or PVG cover.

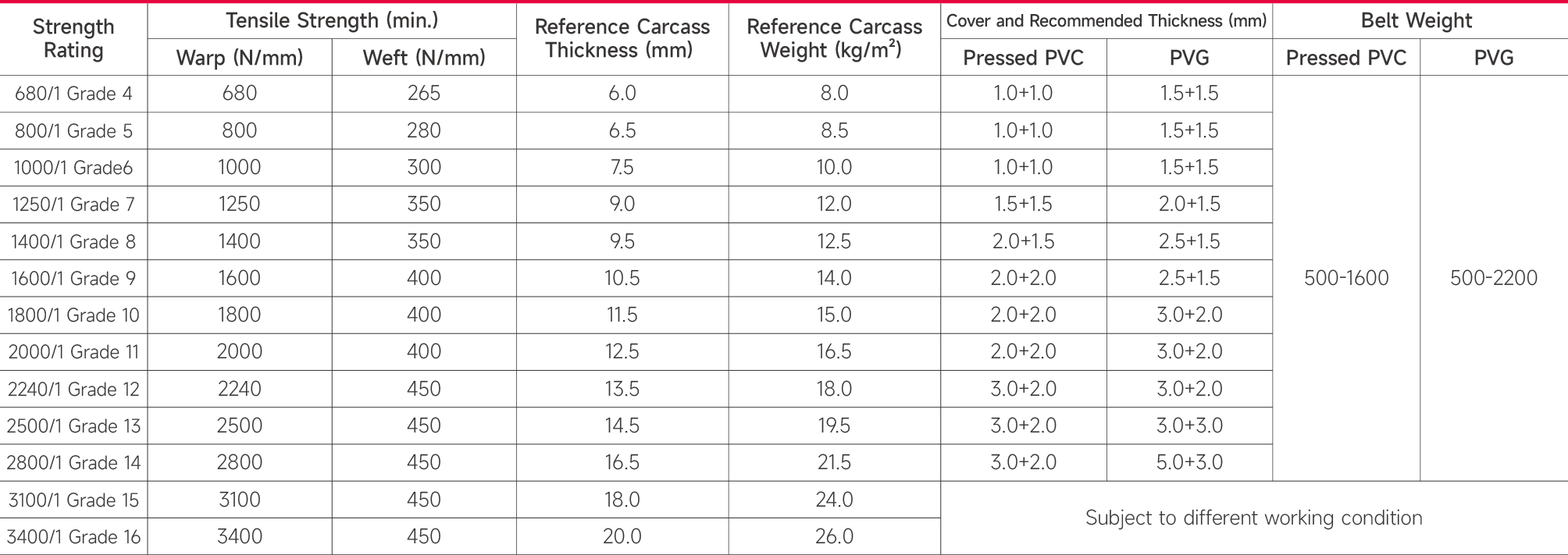

Technical Parameters

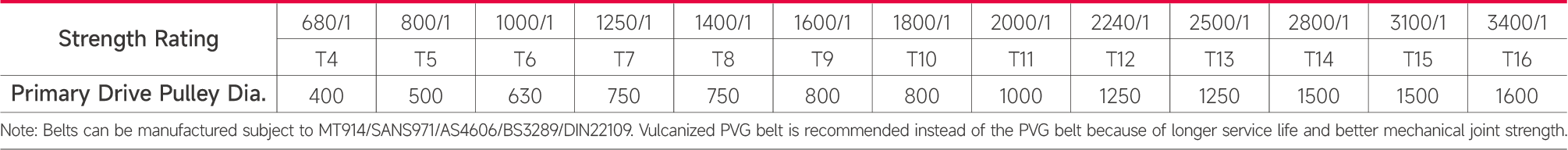

Recommended Min.Pulley Dia.
Applications
● Standard PVC conveyor belts are suitable for applications with incline angle below 16 in dry environments.
● PVG conveyor belts are suitable for applications with incline angle below 18 in humid environments.
● Woven conveyor belts are applicable to underground coalmines as well as the working environments where flame resistance is required in mining power,chemical and metallurgy industries.
