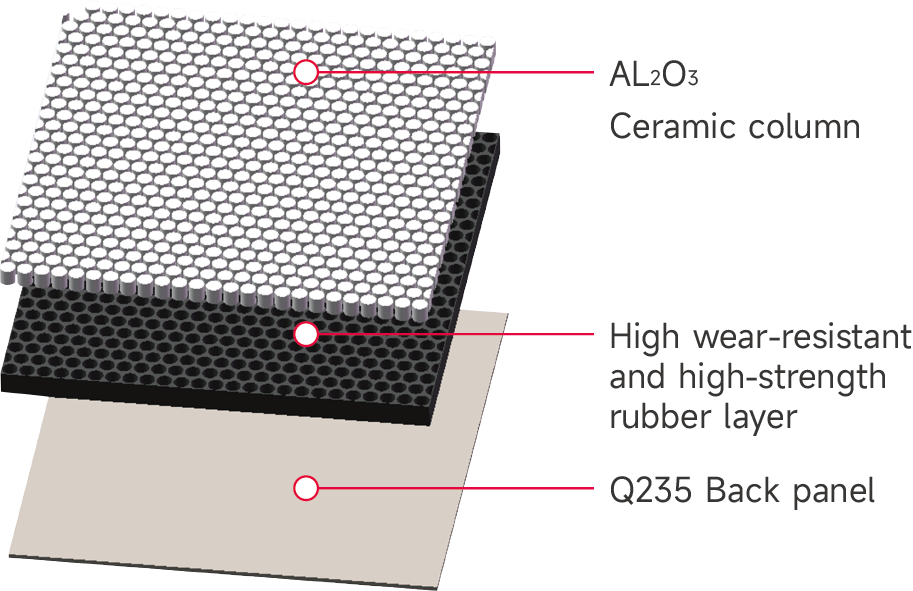

The three-in-one ceramic wear lining is made of three materials:ceramic,rubber and steel plate.The toughened ceramic tile is vulcanized in the steel plate groove filled with special rubber using a hot vulcanization process:alumina ceramics can enhance the wear resistance of the equipment,rubber can act as a buffer material,and the rubber used has flame retardant,heat resistant,acid and alkali resistant properties,and can adapt to a variety of material environments.

Product Features

● Super wear-resistant: Alumina corundum ceramics,with a hardness of HRA88 or above,have excellent wear resistance;

● Impact resistance: The toughened ceramic formula ensures that the ceramics are not easy to break,and a unique spherical ceramic can be designed to resist the impact of large pieces of materials;the composite rubber layer further enhances the impact resistance of the lining;

● Acid and alkali resistance: The main component of the ceramics is Al203,which has stable chemical properties and strong acid and alkali resistance;

● Anti-falling: The ceramic rubber steel plate is vulcanized in one piece,and the hot vulcanization process makes it more firmly combined.Each piece of ceramic has a penetrating bolt passing through the bottom steel plate, which is firmly welded and has double insurance;

● Easy to install and replace: A whole lining plate,and modular installation,make easy replacement and installation,which can be used only in certain heavy wear and strong impact areas,saving operating costs;

● Reduce maintenance: Super wear resistance greatly reduces the frequency of maintenance,which can save costs and labor costs;

● Support customization: The working temperature is-50C-100C,and the shape,size and thickness of the ceramic block or lining plate can be customized as needed.

Application

It is suitable for mechanical equipment with large wear such as feeding hopper of conveying system,powder making system,ash removal and dust removal system,etc.

It can reduce the impact wear on the equipment.It is widely used in thermal power,steel smelting,coal,mining, chemical industry,cement,port and other industries to transport materials,and as anti-wear lining for silos,hoppers and other equipment in batching systems.

Installation Method

It is suitable for mechanical equipment with large wear such as feeding hopper of conveying system,powder making system,ash removal and dust removal system,etc.It can reduce the impact wear on the equipment.It is widely used in thermal power,steel smelting,coal,mining,chemical industry,cement,port and other industries to transport materials,and as anti-wear lining for silos, hoppers and other equipment in batching systems.
