Suitable for all kinds of conveyor belt thicknessNylon,polyester,PVC PVG,chevron,pipe,sidewall conveyor,steel cord conveyor belt (short-term emergency transition).
+86-532-66738109 Features
● Suitable for all kinds of conveyor belt thickness
Nylon,polyester,PVC PVG,chevron,pipe,sidewall conveyor,steel cord conveyor belt (short-term emergency transition).

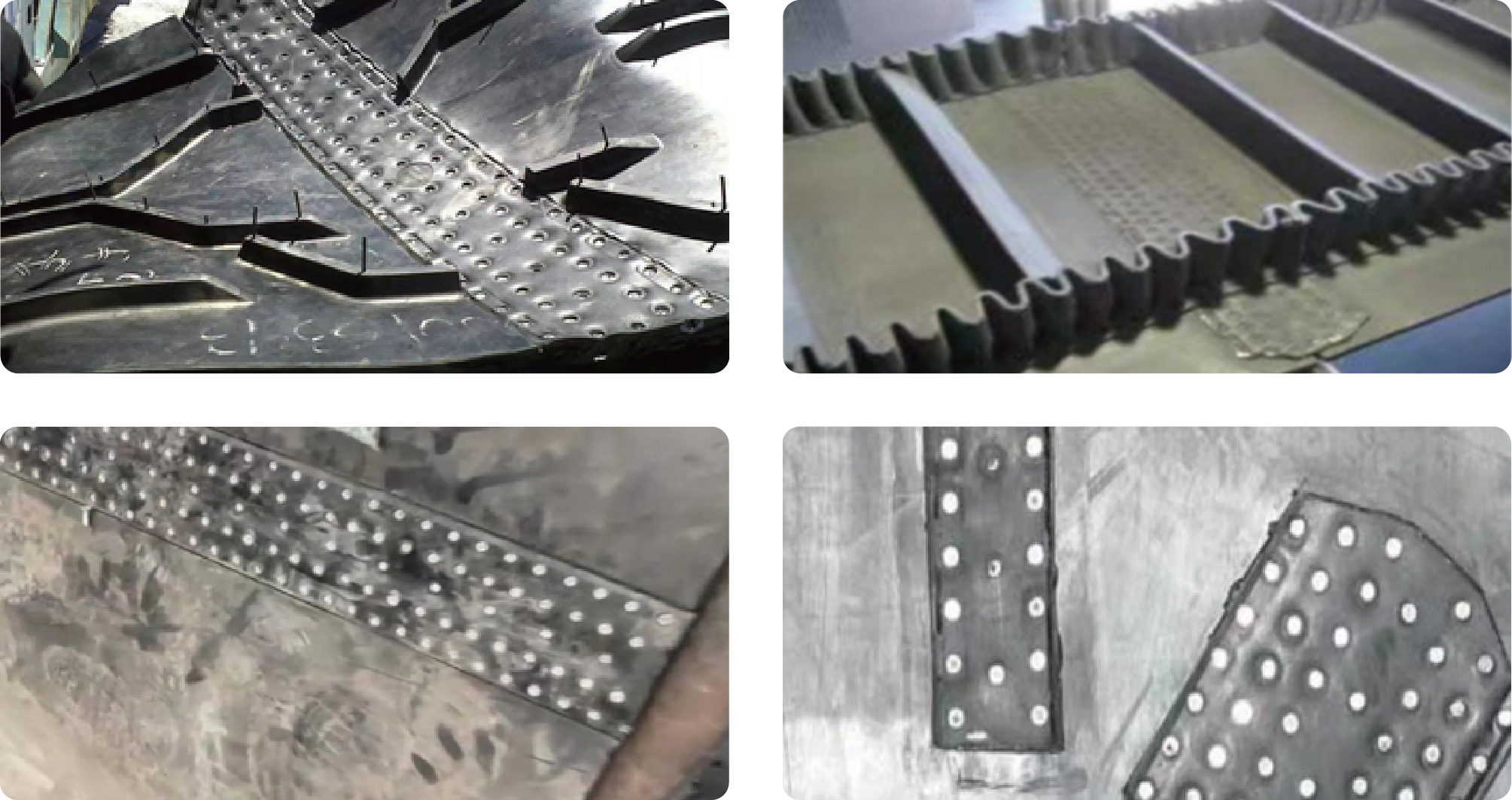

● Various conveyor belt damage can be repaired
Large scratches,tears,punctures,rubber peel-off.
● Suitable for splicing of different grades and fabric layers
(Example:six grades to seven grades,three layers to four layers).
● Vulcanizing machine is not required,and operation is convenient and fast
Hand drill or gas drill,explosion-proof electric drill (underground mine)and other splicing essentials,are reguird.
Simple and fast operation (about 2 hours),reduced downtime and losses.
● More friendly to working conditions
It is not affected by extreme weather such as rain,snow,ice and frost.
The operating space requirement is small,and it is not limited by some special narrow working conditions.
● High strength,anti cutting,elastic,heat resistant,abrasion resistant, acid and alkali resistant,high temperature resistant,oil resistant,and customized according to requirements
● Integrated design,no leakage of conveying materials,no hinge
● Adapt to various sizes of pulleys and scrapers

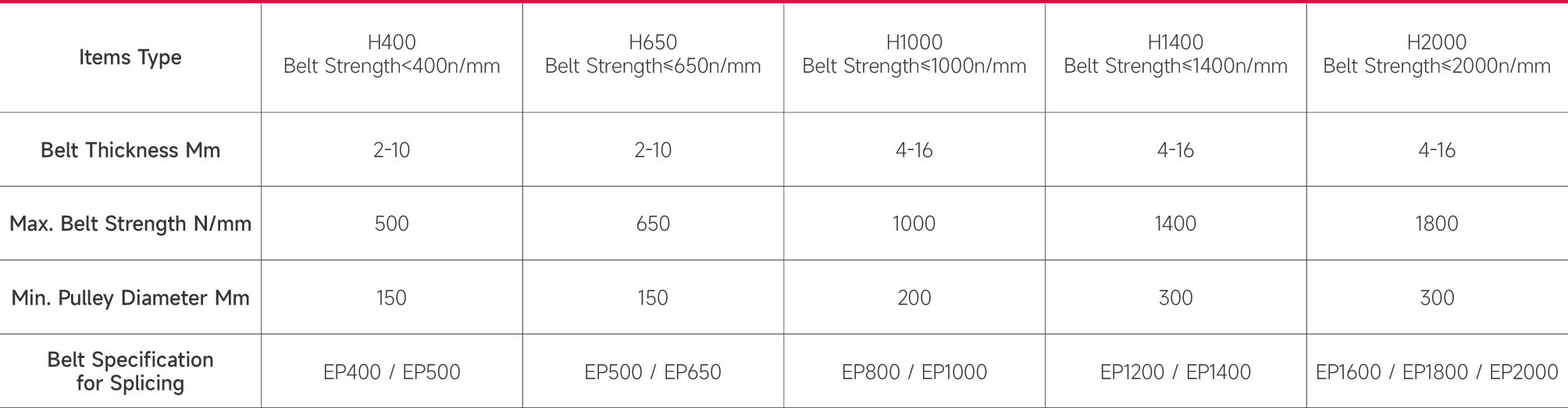

Selection Guidance
● The thickness of the conveyor belt determines the length of the screw.
● Cover rubber:abrasion resistant heat resistant acid and alkali resistant,etc.
● Conveyor belt width=splicing length (the belt strengths600N/mm).
Conveyor belt width*1.06=Splicing length.
(critical application,scraper,strength 600N/mm,or light material,narrow belt,poor troughability,or ultra-wide belt which can be spliced by 2 joint products to increase the width of the spliceable belt-for example:1.6m*2=3.2m Bw)
● Screw length:according to the demand.
